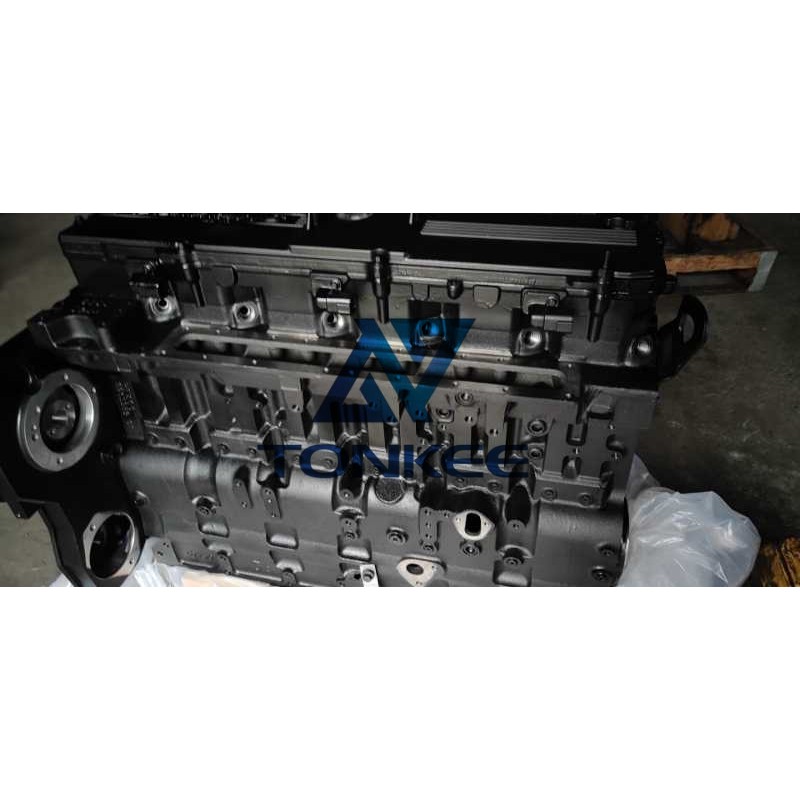

Komatsu SAA6D114 engine:
Configuration: 4-stroke, inline 6-cylinder diesel engine
Displacement: 8.27 liters (505 cubic inches)
Bore and stroke: 114 mm x 144 mm (4.49 in x 5.67 in)
Compression ratio: 17.3:1
Max power output: 232 kW (311 hp) at 2,100 RPM
Max torque: 1,356 Nm (1,000 lb-ft) at 1,400 RPM
Aspiration: Turbocharged and aftercooled
Fuel system: Direct injection
Cooling system: Water-cooled with heat exchanger
Lubrication system: Forced lubrication with gear-driven pump
Komatsu PC300-8 excavator:
Operating weight: 30,900 kg (68,100 lb)
Engine: Komatsu SAA6D114E-3
Net power output: 184 kW (246 hp) at 2,100 RPM
Bucket capacity: 1.3 - 3.6 m³ (1.7 - 4.7 yd³)
Komatsu PC350-8 excavator:
Operating weight: 34,320 kg (75,690 lb)
Engine: Komatsu SAA6D114E-3
Net power output: 184 kW (246 hp) at 2,100 RPM
Bucket capacity: 1.6 - 3.9 m³ (2.1 - 5.1 yd³)
Part number 6745-21-1190:
This is a fuel filter for Komatsu equipment, including the PC300-8 and PC350-8 excavators.
It is designed to remove impurities and contaminants from the fuel before it enters the engine.
