Cummins CA3500D:
Engine type: 4-stroke, inline, 4-cylinder diesel engine
Number of cylinders: 4
Displacement: 3.8 liters (232 cubic inches)
Bore and stroke: 102 mm x 115 mm (4.02 in x 4.53 in)
Compression ratio: 16.5:1
Fuel system: High-pressure common rail (HPCR)
Cooling system: Liquid cooled
Maximum power output: 97 kW (130 hp) at 2,200 rpm
Emissions compliance: Meets China III and IV, EU Stage IIIA and IIIB, and U.S. EPA Tier 4 Interim emissions standards
Dimensions: 950 mm (L) x 676 mm (W) x 842 mm (H)
Weight: Approximately 375 kg (827 lbs)

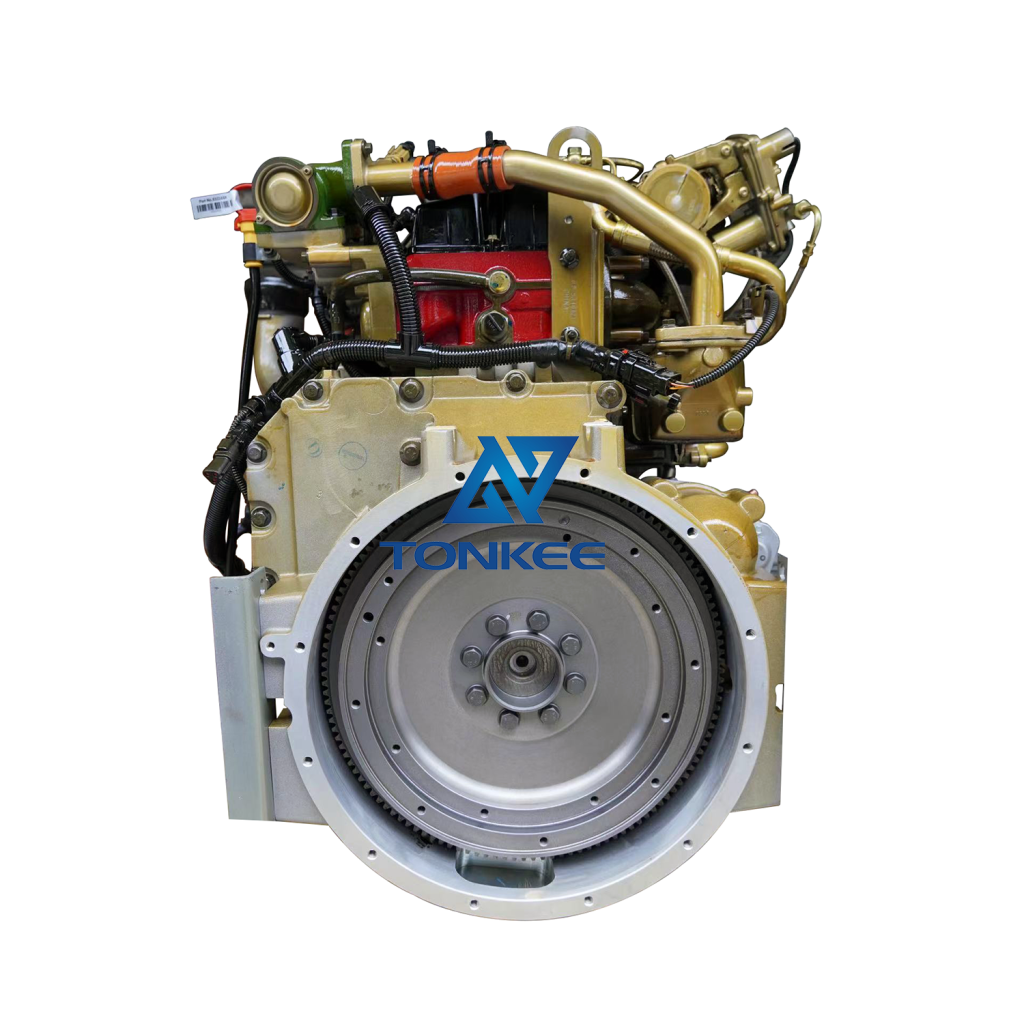

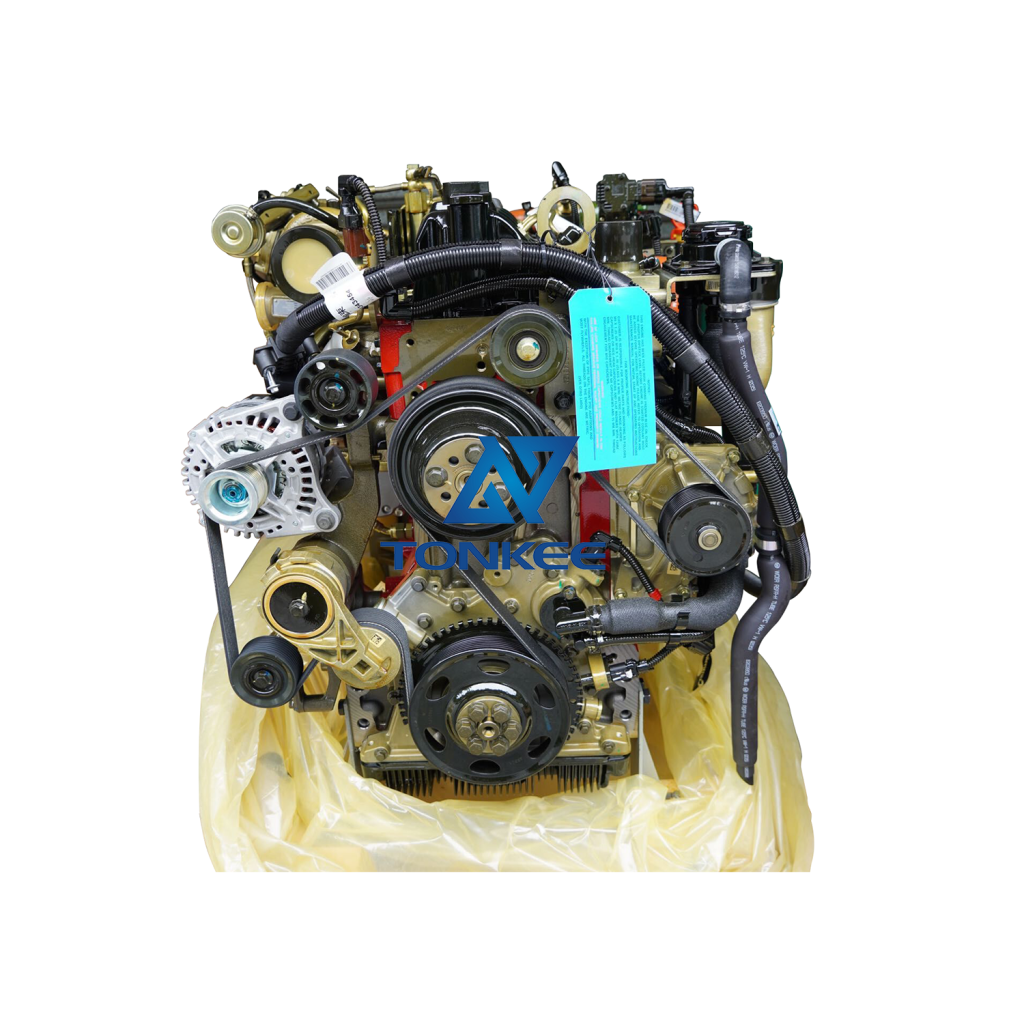

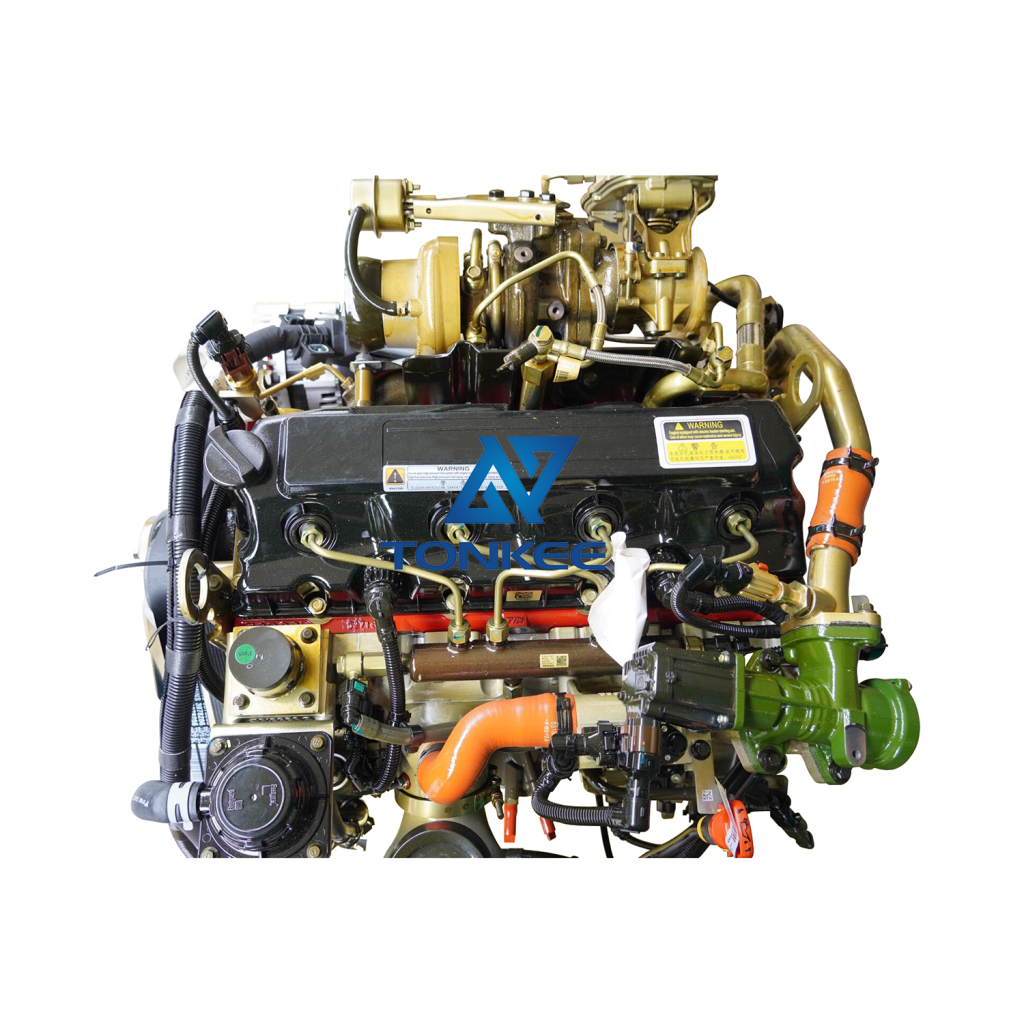

Cummins QSF3.8:
Engine type: 4-stroke, inline, 4-cylinder diesel engine
Number of cylinders: 4
Displacement: 3.8 liters (232 cubic inches)
Bore and stroke: 102 mm x 115 mm (4.02 in x 4.53 in)
Compression ratio: 16.5:1
Fuel system: High-pressure common rail (HPCR)
Cooling system: Liquid cooled
Maximum power output: 97 kW (130 hp) at 2,200 rpm
Emissions compliance: Meets China III and IV, EU Stage IIIA and IIIB, and U.S. EPA Tier 4 Interim emissions standards
Dimensions: 950 mm (L) x 676 mm (W) x 842 mm (H)
Weight: Approximately 375 kg (827 lbs)
