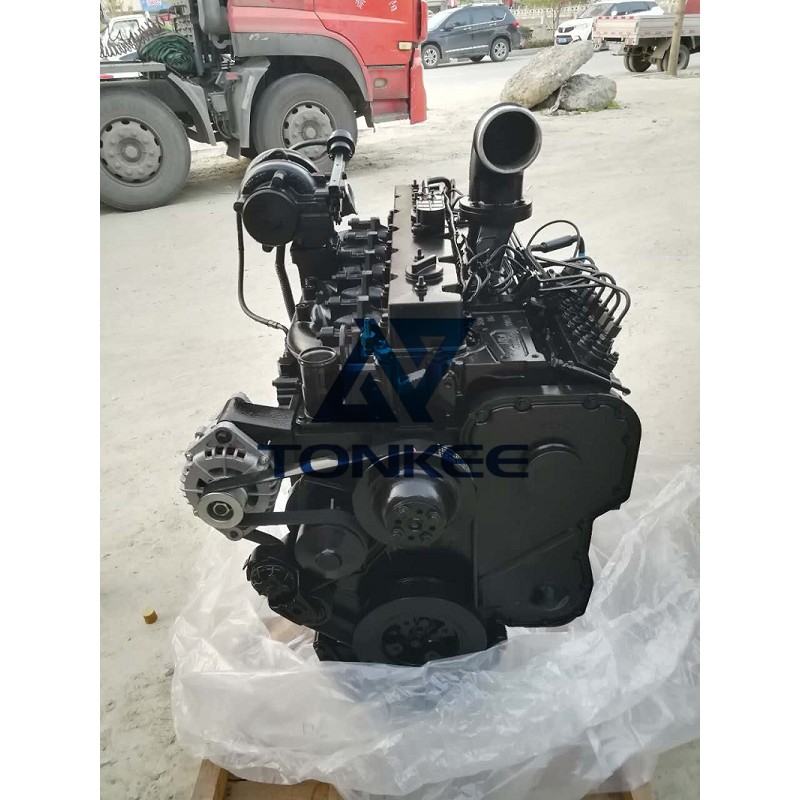

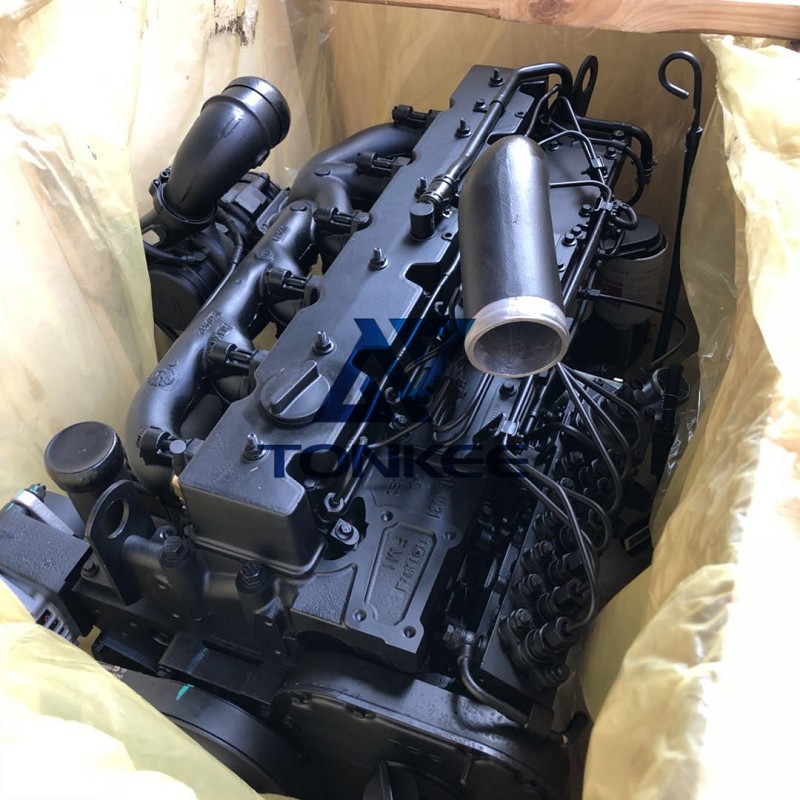

China SA6D114E-2 D61PX-12 6CT8.3 ENGINE ASSY

Engine Model: Komatsu SA6D114E-2
Engine Type: Four-stroke, in-line, six-cylinder diesel engine with direct injection system
Displacement: 8.27 liters (505 cubic inches)
Bore x Stroke: 114 mm x 135 mm
Compression Ratio: 17.25:1
Fuel System: Direct injection with up to 1,800 bar injection pressure
Aspiration: Turbocharged and aftercooled
Cooling System: Water-cooled with centrifugal pump, thermostatically controlled
Lubrication System: Gear-driven pump with full-flow filter and bypass filter
Power Output: 168 kW (225 hp) at 2,000 RPM
Torque Output: 1,040 Nm (767 lb-ft) at 1,600 RPM
Emissions Compliance: EPA Tier 2/EU Stage II
Weight: Approximately 864 kg (1,904 lbs)
