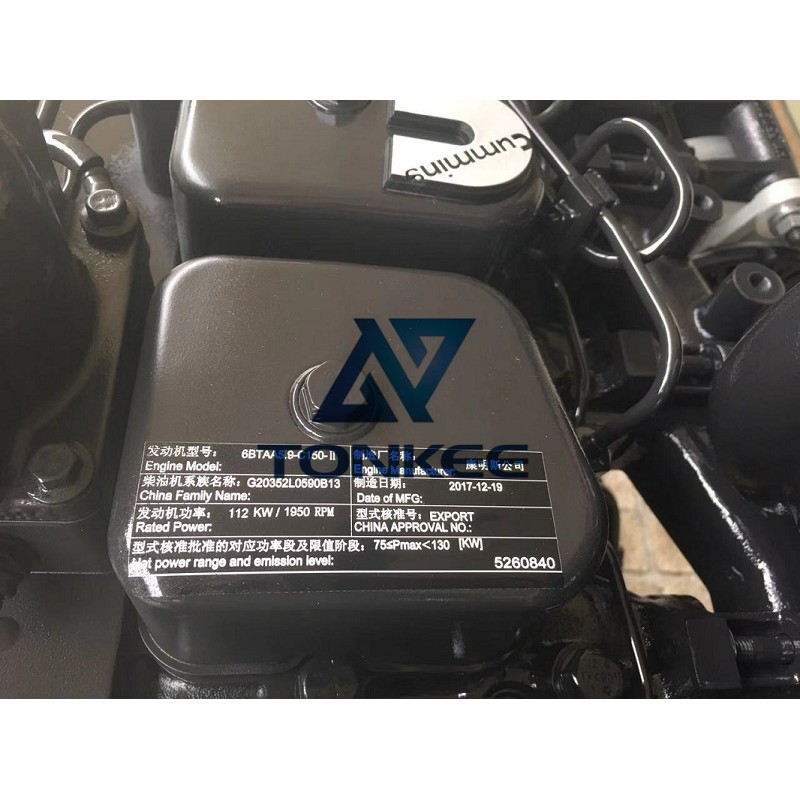

6BTAA5.9-C150:
Engine Type: 4-Cycle Water-Cooled Aspiration Turbocharged and Aftercooled
Number of Cylinders: 6
Bore x Stroke: 102mm x 120mm
Displacement: 5.88 liters
Compression Ratio: 17.5:1
Rated Output: 112 kW (150 hp) @ 2200 rpm
Max. Torque: 570 Nm @ 1500 rpm

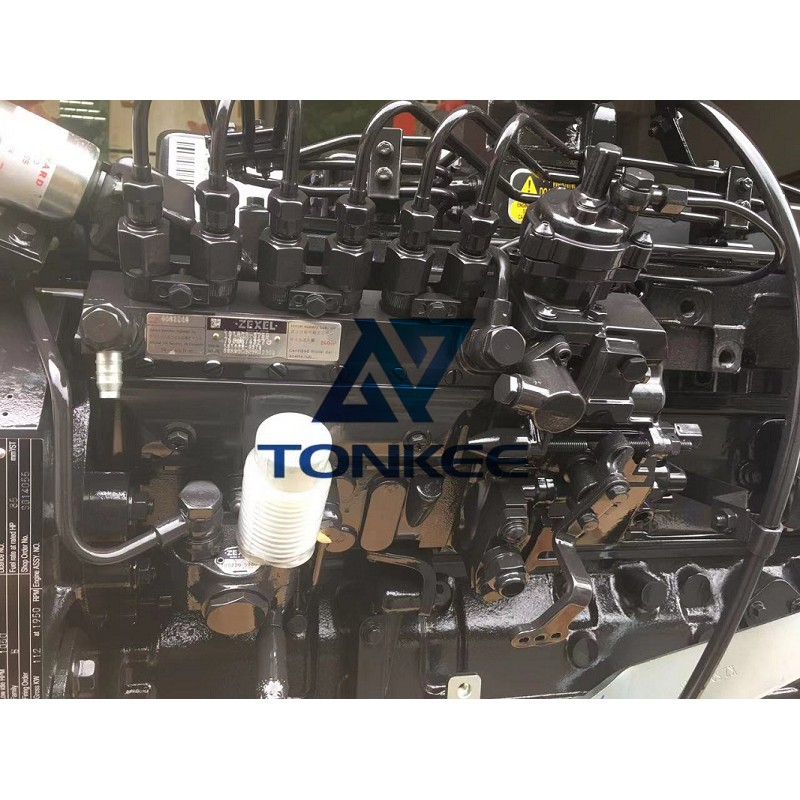

Fuel System: Direct Injection
Emissions Certification: EPA Tier 2, EU Stage II
6BT5.9:
Engine Type: 4-Cycle Water-Cooled Aspiration Turbocharged and Aftercooled
Number of Cylinders: 6
Bore x Stroke: 102mm x 120mm
Displacement: 5.88 liters
Compression Ratio: 17.5:1
Rated Output: 108 kW (145 hp) @ 2200 rpm
Max. Torque: 570 Nm @ 1500 rpm
Fuel System: Direct Injection
Emissions Certification: EPA Tier 1
PC210-6:
Operating Weight: 20,340 kg (44,790 lb)
Engine Model: S6D102E-1
Engine Type: Water-Cooled, 4-Cycle, Direct Injection
Number of Cylinders: 6
Bore x Stroke: 102mm x 120mm
Displacement: 5.88 liters
Rated Output: 107 kW (143 hp) @ 2000 rpm
Max. Torque: 671 Nm @ 1300 rpm
Emissions Certification: EPA Tier 1
PC200-7:
Operating Weight: 19,460 kg (42,900 lb)
Engine Model: SAA6D102E-2
Engine Type: Water-Cooled, 4-Cycle, Direct Injection
Number of Cylinders: 6
Bore x Stroke: 102mm x 120mm
Displacement: 5.88 liters
Rated Output: 110 kW (148 hp) @ 2000 rpm
Max. Torque: 673 Nm @ 1400 rpm
Emissions Certification: EPA Tier 2, EU Stage II
