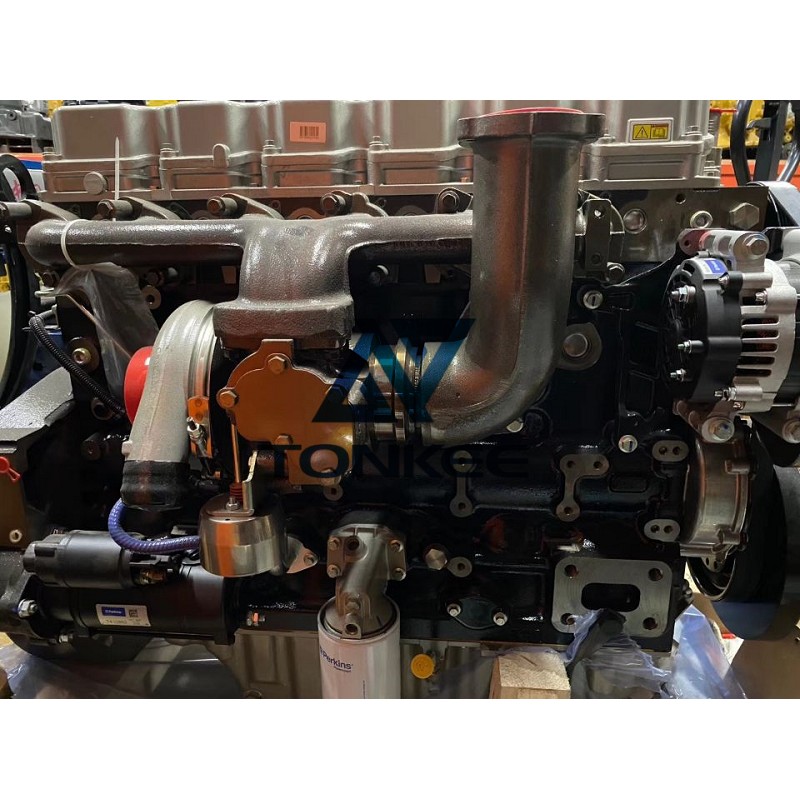

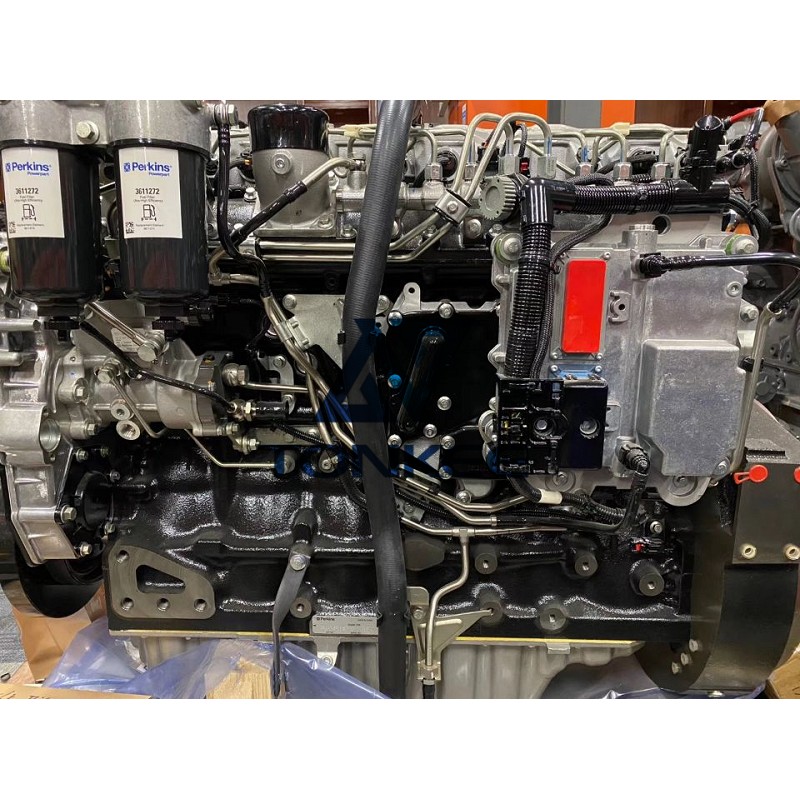

OEM E320D2 C7.1 engine assy

Engine Model: Caterpillar C7.1
Engine Type: Four-stroke, in-line, six-cylinder diesel engine with direct injection system
Displacement: 7.01 liters (427 cubic inches)
Bore x Stroke: 105 mm x 135 mm
Compression Ratio: 16.2:1
Fuel System: Common rail fuel injection system with up to 2,500 bar injection pressure
Aspiration: Turbocharged and aftercooled
Cooling System: Water-cooled with gear-driven centrifugal pump and thermostatically controlled fan
Lubrication System: Gear-driven pump with full-flow filter and bypass filter
Power Output: 149 kW (200 hp) at 1,800 RPM
Torque Output: 922 Nm (680 lb-ft) at 1,200 RPM
Emissions Compliance: EPA Tier 4 Final/EU Stage IV
Weight: Approximately 1,089 kg (2,400 lbs)
