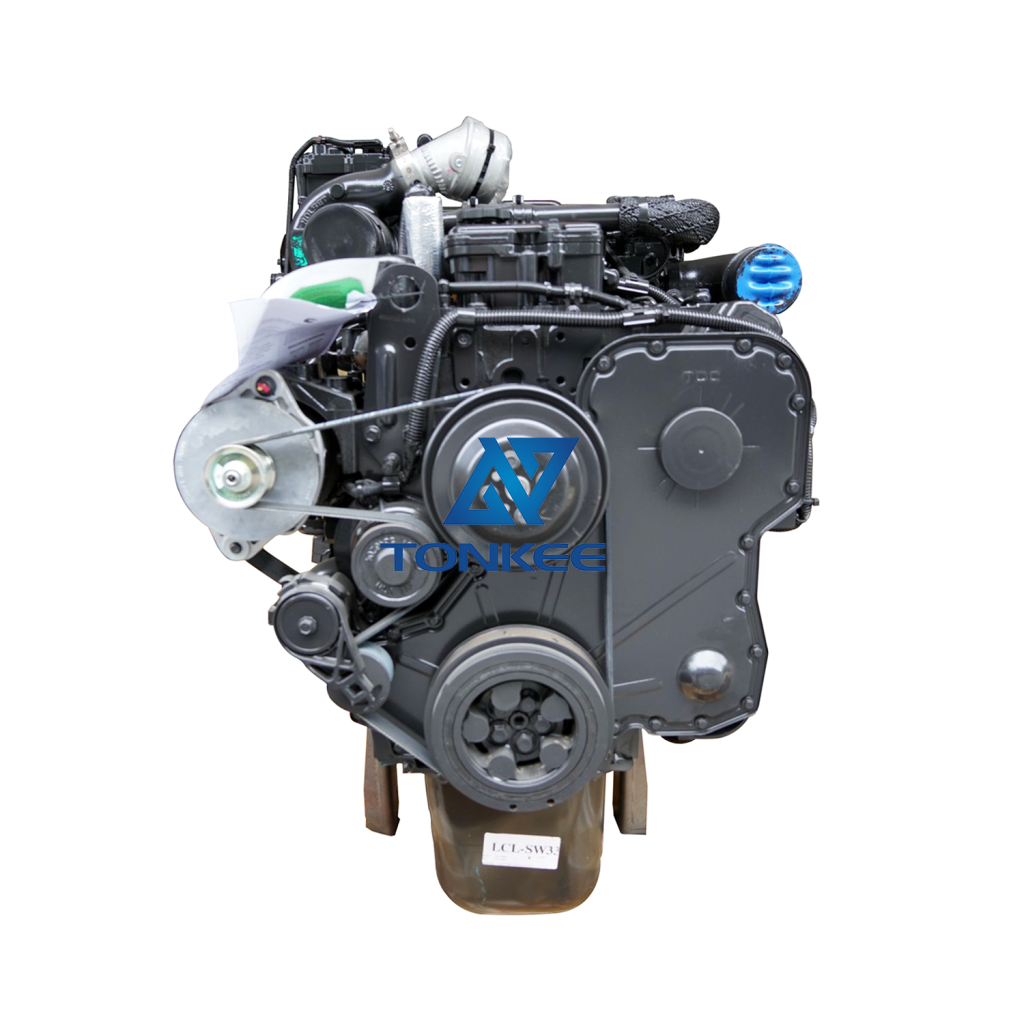

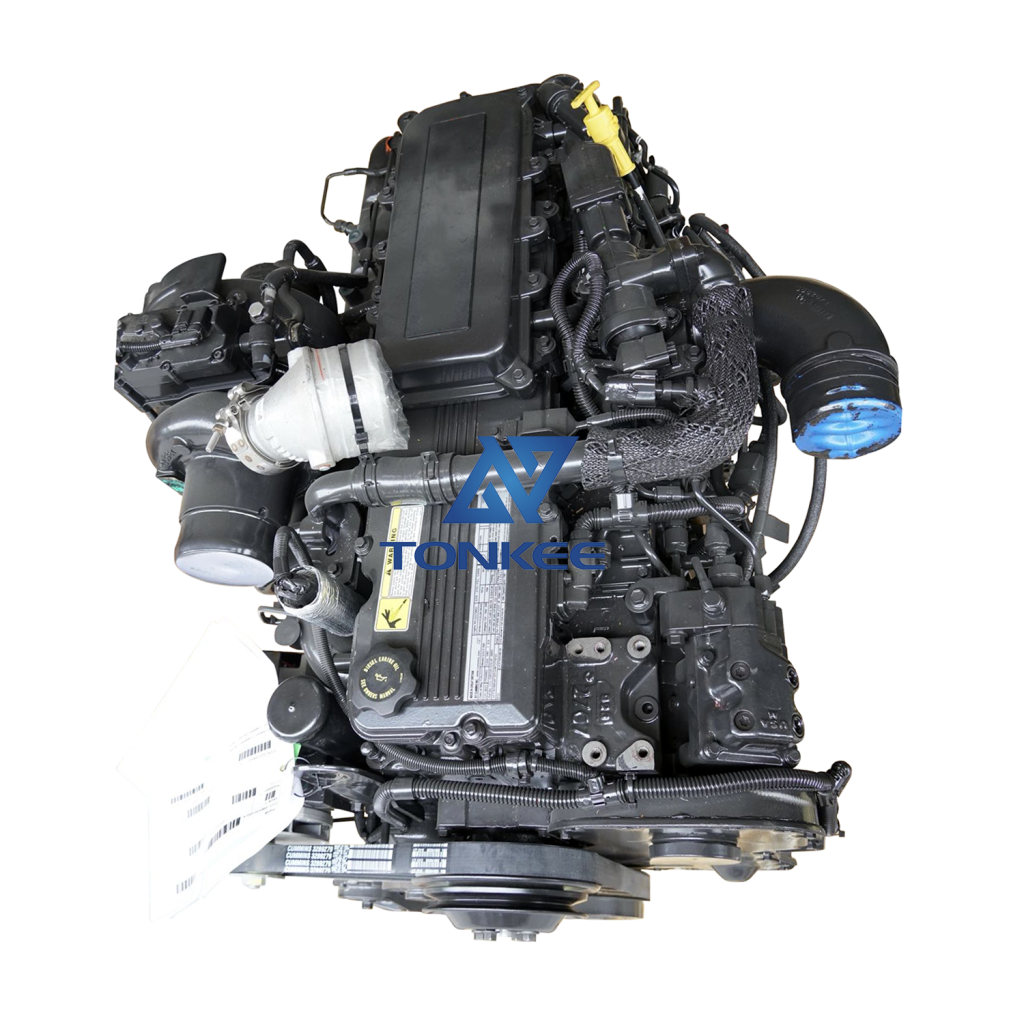

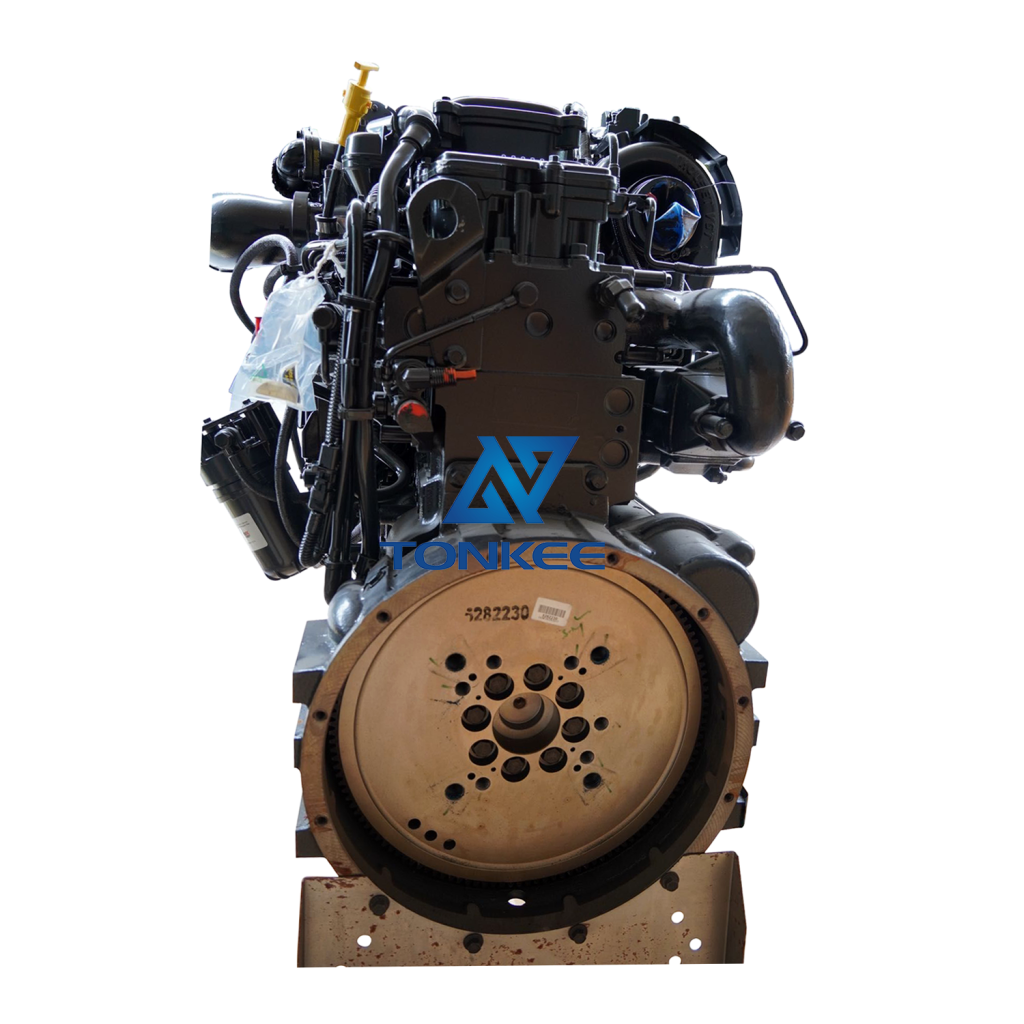

Cummins QSL9-300:
Engine type: 4-cycle, turbocharged, water-cooled, diesel engine
Number of cylinders: 6
Displacement: 8.9 liters (543 cubic inches)
Bore and Stroke: 114 mm x 145 mm (4.49 in x 5.71 in)
Compression Ratio: 16.2:1
Aspiration: Turbocharged with air-to-air aftercooler
Fuel System: High-pressure common-rail (HPCR)
Cooling System: Liquid-cooled, with gear-driven centrifugal water pump and pusher-type electric fan
Maximum Power: 224 kW (300 hp) at 2100 rpm
Peak Torque: 1356 Nm (1000 lb-ft) at 1400 rpm
Emissions Compliance: EPA Tier 4 Final, EU Stage IV
Dimensions: 1235 mm (L) x 923 mm (W) x 1058 mm (H)
Weight: Approximately 1264 kg (2786 lbs)
Cummins QSL8.9-C300 and QSL8.9:
Engine type: 4-cycle, turbocharged, water-cooled, diesel engine
Number of cylinders: 6
Displacement: 8.9 liters (543 cubic inches)
Bore and Stroke: 114 mm x 145 mm (4.49 in x 5.71 in)
Compression Ratio: 16.2:1
Aspiration: Turbocharged with air-to-air aftercooler
Fuel System: High-pressure common-rail (HPCR)
Cooling System: Liquid-cooled, with gear-driven centrifugal water pump and pusher-type electric fan
Maximum Power: 224 kW (300 hp) at 2100 rpm
Peak Torque: 1356 Nm (1000 lb-ft) at 1400 rpm
Emissions Compliance: EPA Tier 3/Stage IIIA or Tier 4 Final/Stage IV
Dimensions: 1235 mm (L) x 923 mm (W) x 1058 mm (H)
Weight: Approximately 1264 kg (2786 lbs)
Hyundai HL770XTD-9A and HL770-9:
Engine Model: Cummins QSL9-300 or QSL8.9-C300
Maximum Power: 224 kW (300 hp) at 2100 rpm
Operating Weight: Depending on specific configuration and options, ranging from approximately 23000 kg (50700 lbs) to 26650 kg (58770 lbs)
Bucket Capacity: Depending on specific configuration and options, ranging from approximately 3.6 m3 (4.7 yd3) to 4.5 m3 (5.9 yd3)
