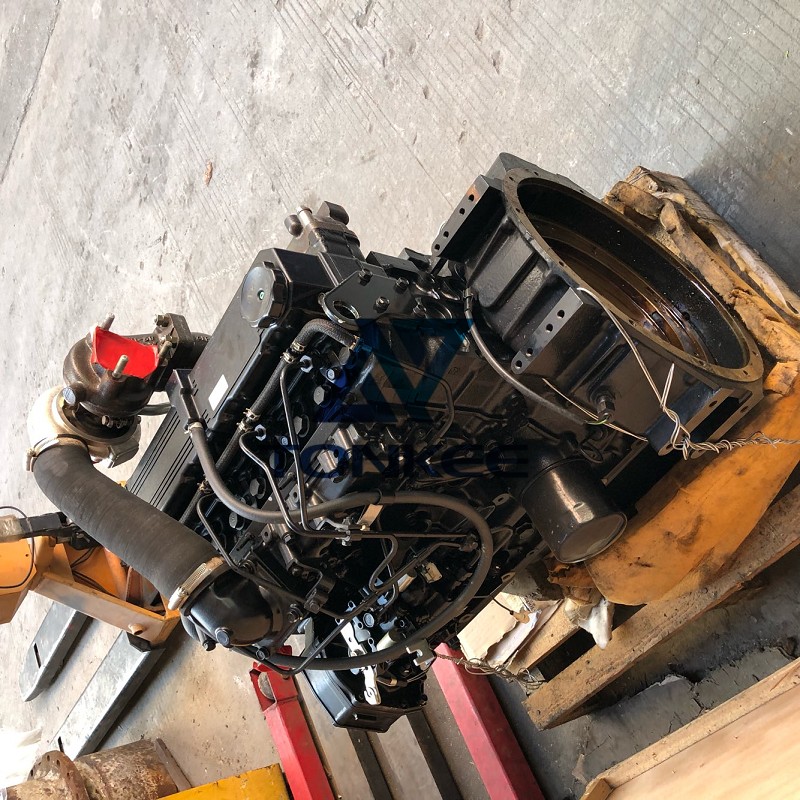

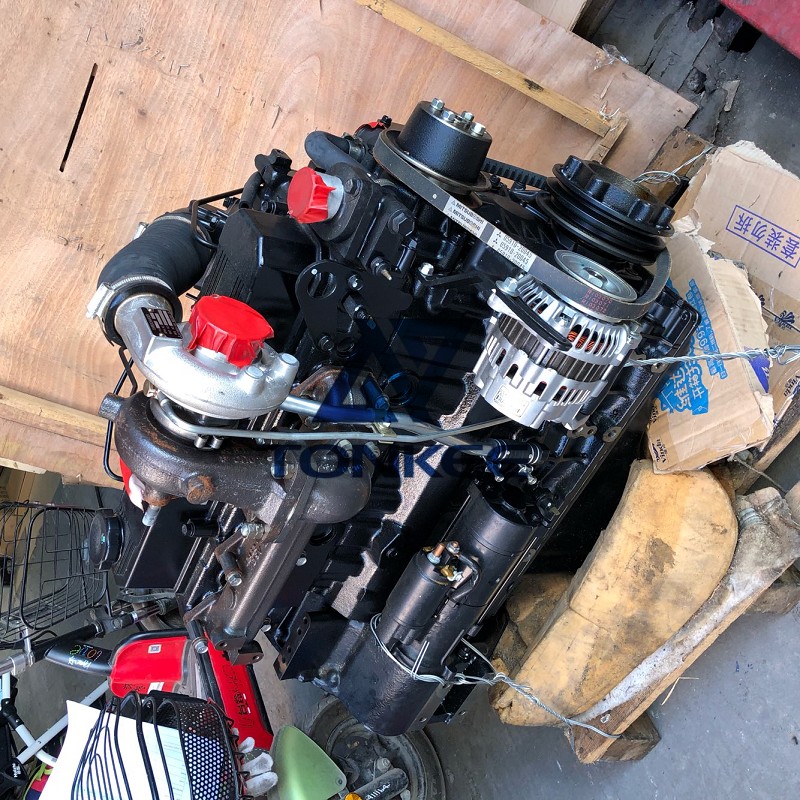

OEM S4SDTDP-2 804D-T complete engine assy

Model: S4SDTDP-2 804D-T
Type: Four-stroke, turbocharged diesel engine
Displacement: 3.4 L (207 cu in)
Number of cylinders: 4
Bore: 84 mm (3.3 in)
Stroke: 100 mm (3.9 in)
Compression ratio: 19:1
Power output: 63.5 kW (85 hp) at 2,800 rpm
Torque output: 290 Nm (214 lb-ft) at 1,600 rpm
Cooling system: Liquid-cooled
Fuel system: Direct injection
Aspiration: Turbocharged
Emissions compliance: Tier 3/Stage IIIA
Dimensions: 703 mm x 616 mm x 662 mm (27.7 in x 24.3 in x 26.1 in)
Weight: 294 kg (648 lbs)
