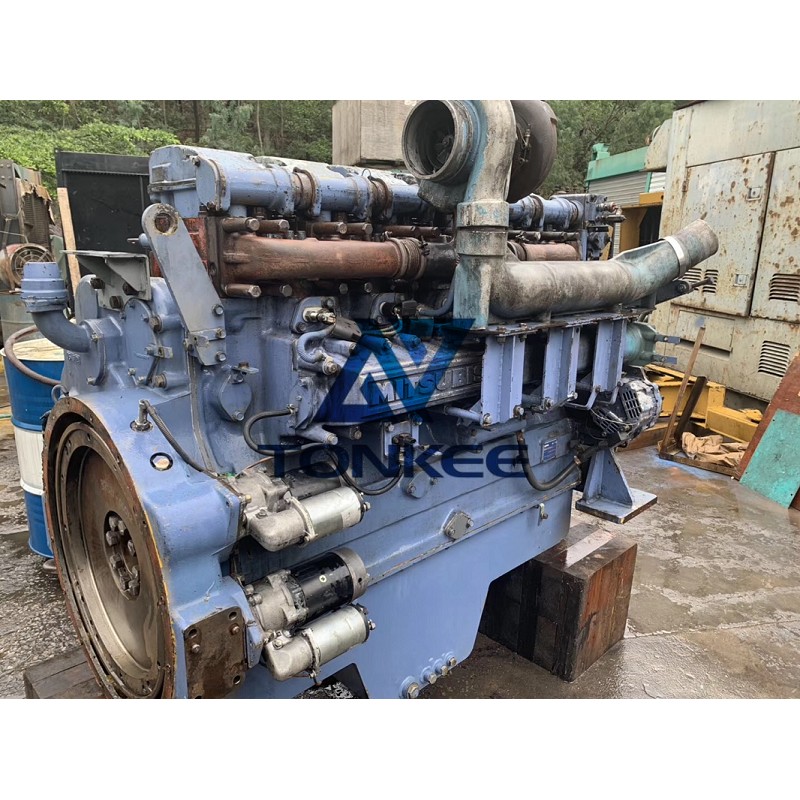

OEM S6R-Y2TAA-2 S6R EX1200-5 EX1200 engine assy

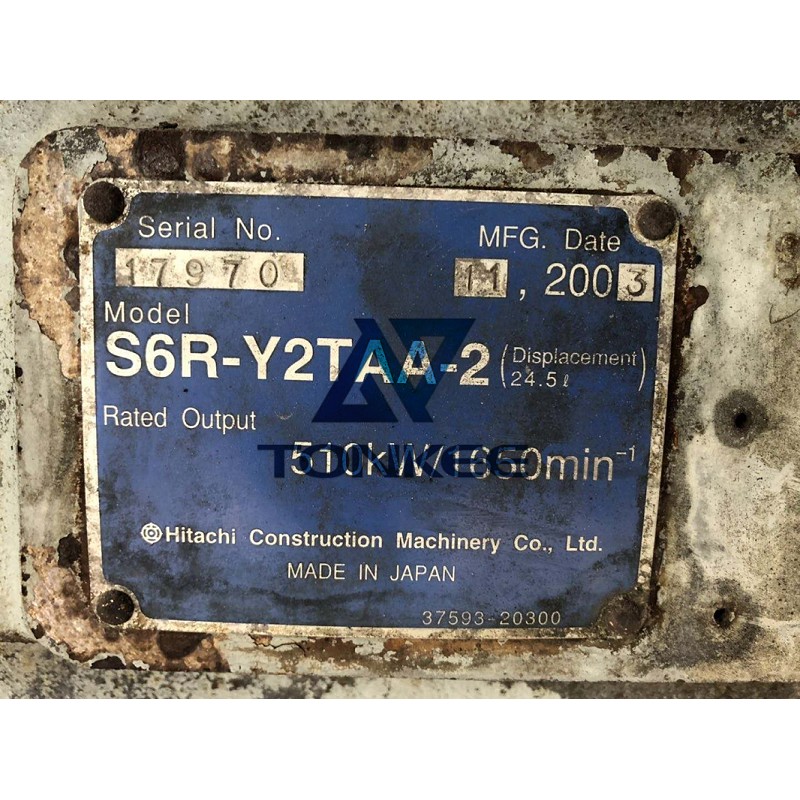

S6R-Y2TAA-2 engine:

Type: 4-cycle, water-cooled, direct injection
Number of cylinders: 6
Displacement: 16.35 L (996 cu in)
Bore x stroke: 137 mm x 165 mm (5.39 in x 6.50 in)
Compression ratio: 16.5 : 1
Max power output: 354 kW (474 hp) @ 1800 rpm
Max torque: 2500 Nm (1844 ft-lb) @ 1300 rpm
Emissions: Tier 2
S6R engine:

Type: 4-cycle, water-cooled, direct injection
Number of cylinders: 6
Displacement: 18.1 L (1,105 cu in)
Bore x stroke: 150 mm x 165 mm (5.91 in x 6.50 in)
Compression ratio: 14.0 : 1
Max power output: 382 kW (512 hp) @ 1800 rpm
Max torque: 2400 Nm (1770 ft-lb) @ 1300 rpm
Emissions: Tier 2
