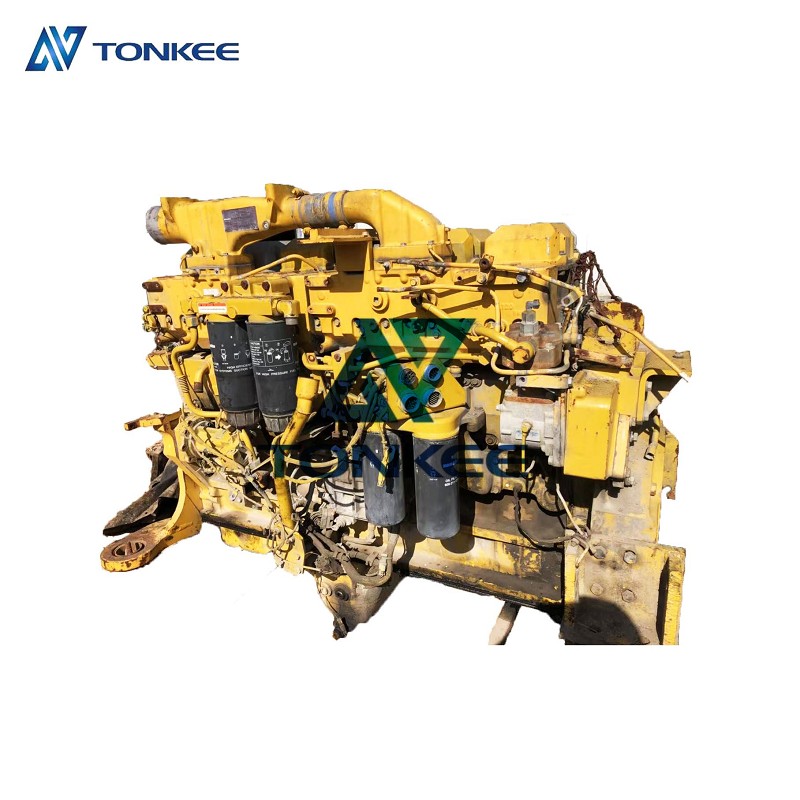

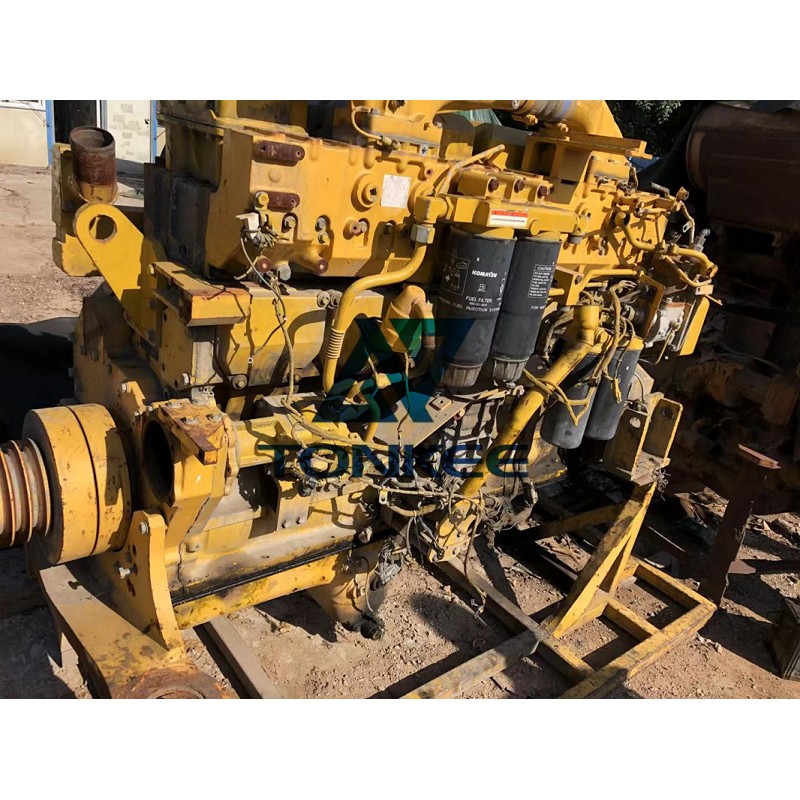

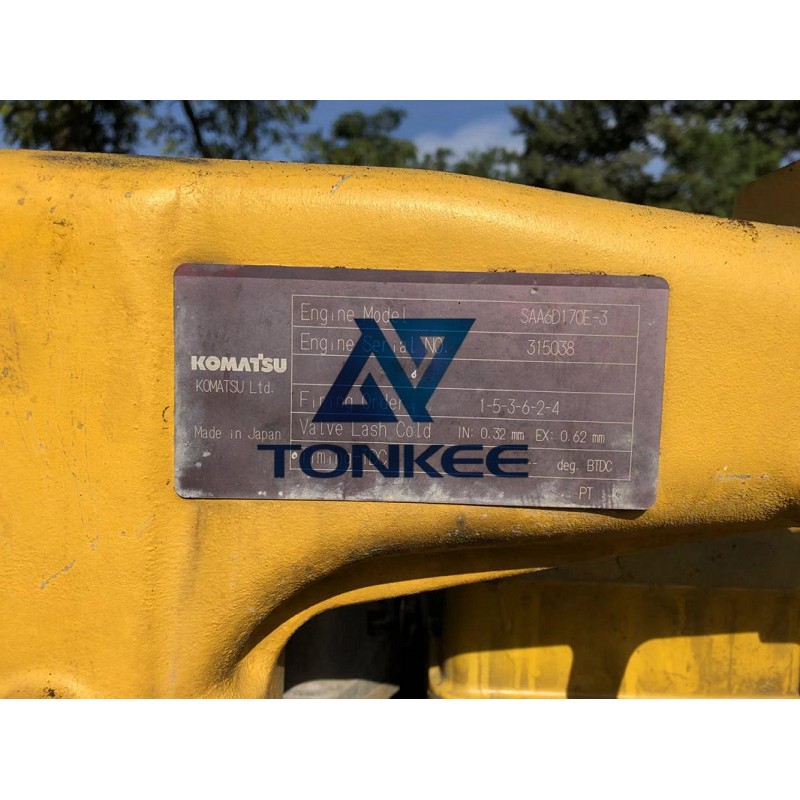

SAA6D170E-3: This is a diesel engine manufactured by Komatsu, commonly used in large mining and construction equipment. Here are some specifications for this engine:
Displacement: 23.15 liters
Number of cylinders: 6
Bore x stroke: 170 mm x 170 mm
Compression ratio: 15.0:1
Max power output: 1,080 kW (1,450 hp) @ 1,800 rpm
Max torque: 6,590 Nm (4,860 lb-ft) @ 1,500 rpm
Emissions level: Tier 4 Final/Stage IV
6D170E-3: This is a diesel engine manufactured by Komatsu, commonly used in mining trucks and other heavy equipment. Here are some specifications for this engine:
Displacement: 23.15 liters
Number of cylinders: 6
Bore x stroke: 170 mm x 170 mm
Compression ratio: 15.0:1
Max power output: 1,080 kW (1,450 hp) @ 1,800 rpm
Max torque: 6,590 Nm (4,860 lb-ft) @ 1,500 rpm
Emissions level: Tier 3/Stage IIIA
QSK23-C: This is a diesel engine manufactured by Cummins, commonly used in power generation, mining, and marine applications. Here are some specifications for this engine:
Displacement: 23 liters
Number of cylinders: 6
Bore x stroke: 170 mm x 200 mm
Compression ratio: 15.0:1
Max power output: 783 kW (1,050 hp) @ 1,800 rpm
Max torque: 4,775 Nm (3,520 lb-ft) @ 1,500 rpm
Emissions level: Tier 1/Stage I
EX1200: This is an excavator manufactured by Hitachi, commonly used in mining and construction applications. Here are some specifications for this excavator:
Operating weight: 238,960 lbs (108,435 kg)
Engine: Cummins QSK23-C
Max digging depth: 26'3" (8.0 m)
Max digging reach: 44'7" (13.6 m)
Max dumping height: 33'10" (10.3 m)
PC1250-8: This is an excavator manufactured by Komatsu, commonly used in mining and construction applications. Here are some specifications for this excavator:
Operating weight: 289,740 lbs (131,420 kg)
Engine: SAA6D170E-3
Max digging depth: 31'7" (9.6 m)
Max digging reach: 50'7" (15.4 m)
Max dumping height: 35'10" (10.9 m)
