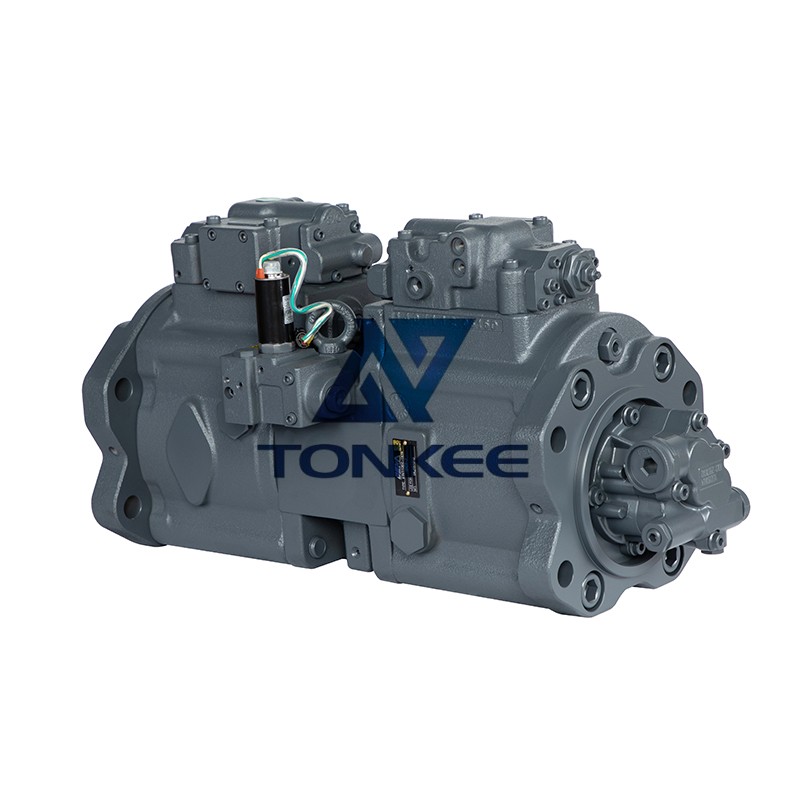

OEM XE335C K3V140DT-9ND9 60100376-J

Type: Axial piston pump with swash plate design
Displacement: 140 cc/rev
Rated pressure: 35 MPa (350 bar)
Maximum pressure: 38.5 MPa (385 bar)
Rated speed: 2000 rpm
Maximum speed: 2200 rpm
Weight: approximately 100 kg
Control type: Negative flow control (NFC)
Mounting type: SAE 4-bolt flange
Input shaft: Splined, with 22 teeth
Shaft rotation: Clockwise (viewed from shaft end)
Recommended oil viscosity: ISO VG32~46
Filtration: ISO 4406 16/14/11 or better
Temperature range: -20°C to 80°C
